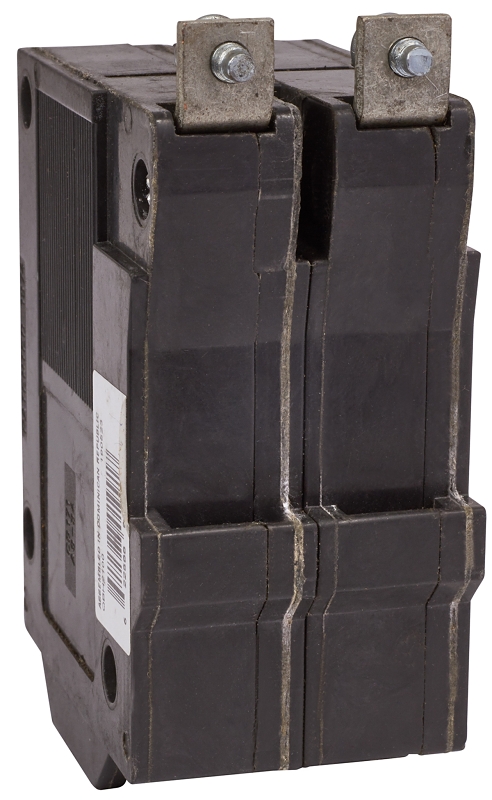

Eaton QBH250 Replacement Classic Circuit Breaker, Type QBH, 50 A, 2-Pole, 120/240 VAC

Eaton

Eaton QBH250 Replacement Classic Circuit Breaker, Type QBH, 50 A, 2-Pole, 120/240 VAC

$81.05$81.05
Eaton QBH250 Replacement Classic Circuit Breaker, Type QBH, 50 A, 2-Pole, 120/240 VAC
  • Actuator Type: Quick-Break Quick-Make
  • Current Rating: 50 A
  • Dimensions: 3-1/2 in L x 3 in W x 1-1/2 in H
  • Interrupt Rating: 10 kA
  • Number of Phases: 1
  • Model #: QBH250
  • UPC #: 622588019948
  • SKU: 7405871

Your shopping list will be used for pickup in-store

Product Details

Eaton Replacement Classic Circuit Breaker, Type QBH, 120/240 VAC, 50 A, Number of Phases: 1, Number of Poles: 2, Interrupt Rating: 10 kA, Actuator Type: Quick-Break, Quick-Make, Trip Type: Common, Long Time, Instantaneous, Wire Size: 10 to 2, 10 to 1 AWG, Terminal Type: Bolt-On, Dimensions: 3-1/2 in L x 3 in W x 1-1/2 in H, Operating Temperature: 40 deg C, Suitable for: Classic CEB, Sylvania or Commander Electric Design Bolt-On Load Centers, Lighting and Distribution Panelboards and Meter Centers

Key Features

  • 3/4 in form factor
  • Silver tungsten contacts with wiping action to prevent carbon buildup on the contact surface
  • Handle provides clear indication of ON/OFF/TRIPPED position
  • Quick-make/quick-break mechanism provides tease-proof operation
  • Internal common trip mechanism
  • Each breaker is electronically calibrated for 40 deg C
  • Compression molded housing and handle for durability and service

Item Specifications

Actuator TypeQuick-Break Quick-Make
Current Rating50 A
Dimensions3-1/2 in L x 3 in W x 1-1/2 in H
Interrupt Rating10 kA
Number of Phases1
Number of Poles2
Operating Temperature40 deg C
Suitable forClassic CEB Sylvania or Commander Electric Design Bolt-On Load Centers Lighting and Distribution Panelboards and Meter Centers
Terminal TypeBolt-On
Trip TypeCommon Long Time Instantaneous
TypeType QBH
Voltage Rating120/240 VAC
Wire Size10 to 2 10 to 1 AWG
